After a CID has activated and registered with your OpenLab Server, it appears in Control Panel as an Analytical Instrument Controller (AIC). This page is for the lab technician who is attaching a physical instrument to the CID and configuring it through Control Panel. The procedure is identical to configuring an instrument on a conventional AIC; the work happens in Control Panel, not in CID Hub.

Prerequisites​

  • The CID must be activated and registered with the OpenLab Server. (The CID's name should appear in Control Panel.)
  • The physical instrument must be connected to the CID's Instrument NIC and powered on.
  • The CDS client must have network connectivity to the AIC.
  • You must have Control Panel credentials with permission to add and configure instruments.
caution

Do not configure multiple instruments on one CID. The second instrument configuration can cause failures and is not supported.

Add and configure the instrument​

To attach an instrument to a CID:

  1. Open Control Panel and sign in.

  2. Confirm the CID is listed as an available instrument controller.

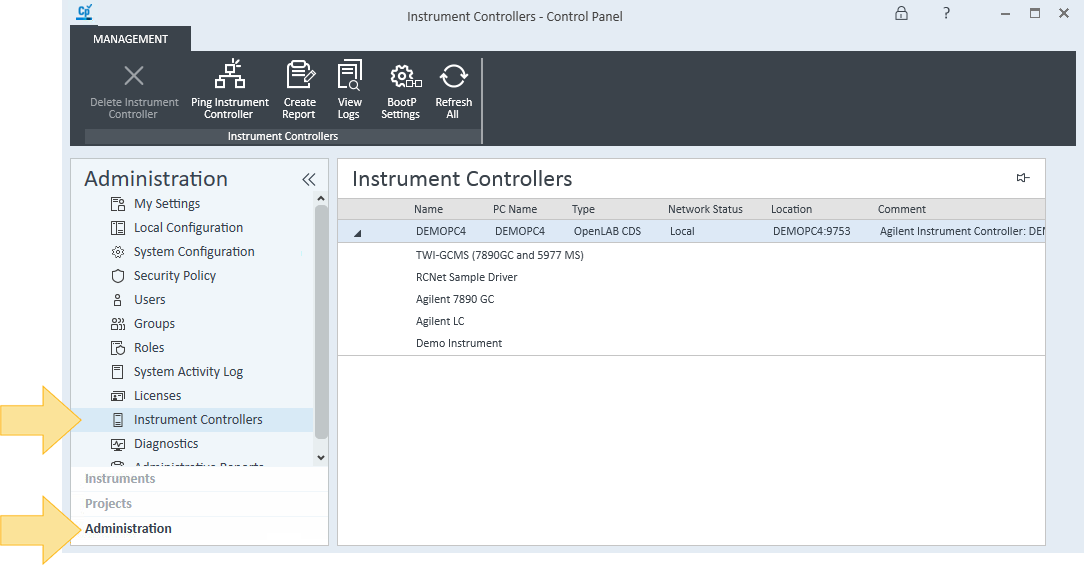

Control Panel Instruments view with the CID's name highlighted in the list of available instrument controllers

  1. Add the instrument and assign the CID as its instrument controller. Follow the Add an Instrument guide in OpenLab Help & Learning.

Control Panel Add Instrument wizard with the CID selected as the instrument controller

  1. Configure the instrument's modules and settings. Follow the Configure an Instrument guide.

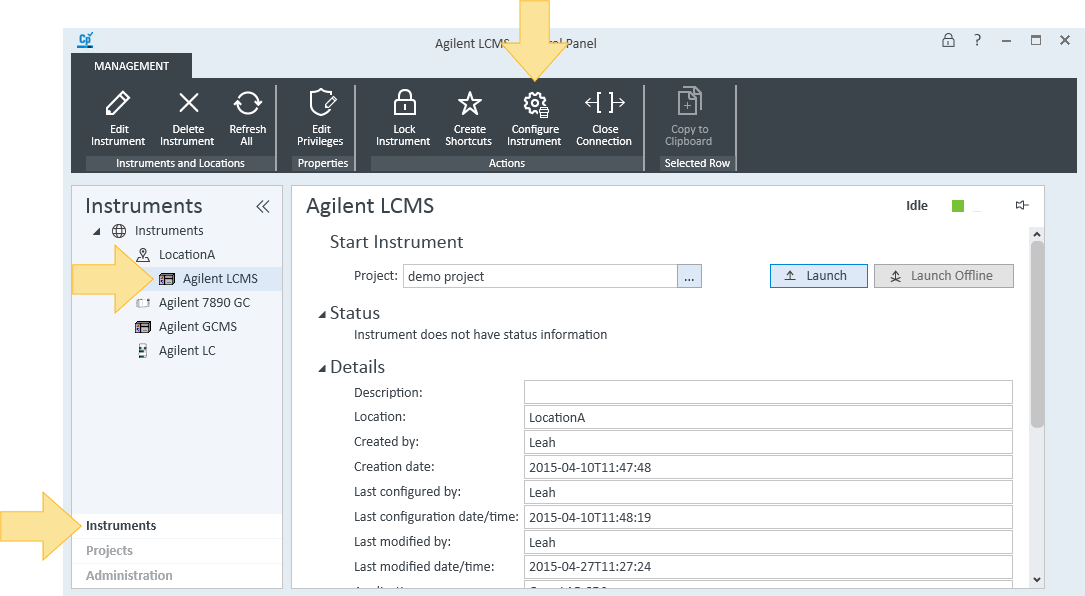

Control Panel instrument configuration view showing the instrument modules and settings

How instrument status affects the CID​

The CID's status in CID Hub reflects whether its configured instruments are connected:

  • In use. At least one configured instrument reports a state other than Not Connected. CID Hub may warn you before a software update or maintenance action in this state.
  • Ready. Every configured instrument reports Not Connected, or no instruments are configured.

Before scheduled maintenance, close each instrument connection in Control Panel and confirm that CID Hub reports Ready.
